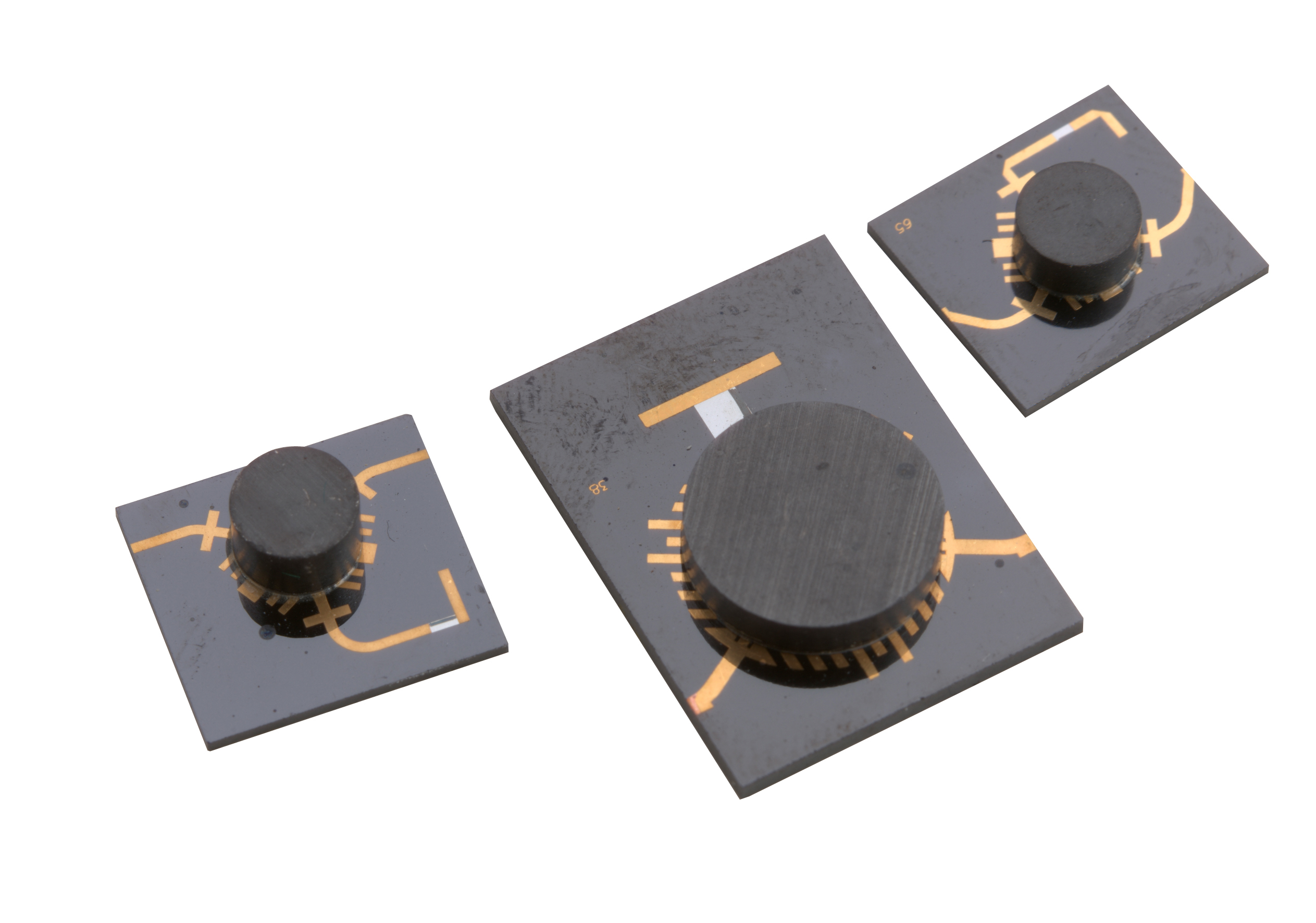

Microstrip Isolator / On Substrate
Search Results
| Part Number | Band (GHz) | Bandwidth (GHz) | VSWR | Ins Loss | Isolation | Power Fwd/Rev | Temporature | Connector | Drawing | Quote Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 3IMM24-4 | 2.10~2.60 | full | 1.2 | 0.4 | 20 | 5/0.25 | -10~+50 | Substrate |  |
|
| 3IMM38-2 | 3.40~4.20 | full | 1.25 | 0.4 | 20 | 5/0.25 | -10~+50 | Substrate | |
|
| 3IMM39-1 | 3.70~4.50 | full | 1.25 | 0.4 | 20 | 5/0.25 | -10~+50 | Substrate | |
|
| 3IMM47-1 | 4.30~5.10 | full | 1.25 | 0.5 | 20 | 5/0.25 | -10~+50 | Substrate | |
|
| 3IMM65-1 | 5.80~7.20 | full | 1.25 | 0.5 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 3IMM65-2 | 5.80~7.10 | full | 1.4 | 0.6 | 16 | 5/1 | -10~+70 | Substrate | |
|
| 3IMM(XX)-7X | 6.30~8.60 | 18 | 1.4 | 0.6 | 16 | 10/1 | -30~+70 | Substrate | |
|
| 3IMM(XX)-2X | 6.30~8.60 | 18 | 1.25 | 0.5 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 3IMM(XX)-1X | 6.30~8.60 | 18 | 1.25 | 0.5 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 3IMM71-1 | 6.30~8.00 | full | 1.25 | 0.5 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 3IMM71-2 | 6.30~8.00 | full | 1.25 | 0.5 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 3IMM78-4A | 7.10~8.50 | full | 1.4 | 0.6 | 16 | 5/1 | -10~+70 | Substrate | |
|
| 3IMM78-1 | 7.10~8.50 | full | 1.25 | 0.5 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 3IMM95-3 | 8.40~10.70 | full | 1.3 | 0.5 | 18 | 5/0.25 | -30~+65 | Substrate | |
|
| 4IMM10-6 | 9.00~11.00 | full | 1.25 | 0.5 | 20 | 5/0.25 | -30~+65 | Substrate | |
|
| 4IMM10-5 | 9.80~10.20 | full | 1.25 | 0.5 | 20 | 5/0.25 | -30~+65 | Substrate | |
|
| 4IMM11-5 | 10.00~12.00 | full | 1.3 | 0.6 | 19 | 5/0.25 | -30~+65 | Substrate | |
|
| 4IMM13-3Y | 12.00~13.50 | full | 1.3 | 0.6 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 4IMM14-6 | 13.70~14.70 | full | 1.3 | 0.6 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 4IMM14-1 | 14.00~14.50 | full | 1.3 | 0.6 | 20 | 5/0.25 | -30~+70 | Substrate | |
|
| 4IMM15-5 | 14.00~15.60 | full | 1.3 | 0.6 | 19 | 5/0.25 | -30~+65 | Substrate | |
|
| 4IMM15-1 | 14.50~15.40 | full | 1.35 | 0.7 | 18 | 5/0.25 | -30~+70 | Substrate | |
|
| 4IMM16-1 | 15.50~17.50 | full | 1.3 | 0.6 | 20 | 2/0.25 | -10~+50 | Substrate | |
|
| 4IMM18-3 | 17.20~18.20 | full | 1.3 | 0.8 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM18-3Y | 17.20~18.30 | full | 1.3 | 0.8 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM19-1C | 17.70~19.70 | full | 1.3 | 0.8 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM19-2 | 17.70~19.70 | full | 1.3 | 0.8 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM20-1 | 18.40~21.30 | full | 1.35 | 0.9 | 18 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM22-1 | 21.20~23.60 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM22-5 | 21.20~23.60 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM(XX)-3X | 23.50~34.00 | 7 | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM25-3 | 24.00~26.00 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM25-2 | 24.50~26.50 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM26-5 | 25.27~26.98 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM29-9 | 26.50~31.50 | full | 1.4 | 1 | 17 | 2/1 | -10~+50 | Substrate | |
|
| 4IMM29-8 | 26.50~31.50 | full | 1.4 | 1 | 17 | 2/1 | -10~+50 | Substrate | |
|
| 4IMM29-1 | 27.35~31.76 | full | 1.35 | 1 | 18 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM28-5 | 27.50~29.50 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM29-6 | 28.00~30.00 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM31-5 | 30.00~32.00 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM(XX)-5X | 31.00~40.00 | 7 | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM(XX)-4X | 31.00~40.00 | 7 | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM32-3 | 31.50~33.50 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM35-8 | 33.50~36.50 | full | 1.35 | 1 | 18 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM35-1A | 34.00~36.00 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM35-9 | 34.00~36.00 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM35-1 | 34.50~35.50 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM36-3 | 35.00~37.00 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM37-1 | 36.00~38.00 | full | 1.3 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM39-2 | 37.00~40.00 | full | 1.35 | 0.9 | 20 | 2/1 | -30~+70 | Substrate | |
|
| 4IMM40-1 | 39.00~41.00 | full | 1.35 | 1.1 | 18 | 1/0.5 | -10~+50 | Substrate | |
|
| 4IMM41-2 | 40.50~42.50 | full | 1.4 | 1.1 | 18 | 1/0.5 | -10~+50 | Substrate | |
|
| 4IMM44-3 | 43.00~45.00 | full | 1.4 | 1.1 | 18 | 1/0.5 | -10~+50 | Substrate | |
