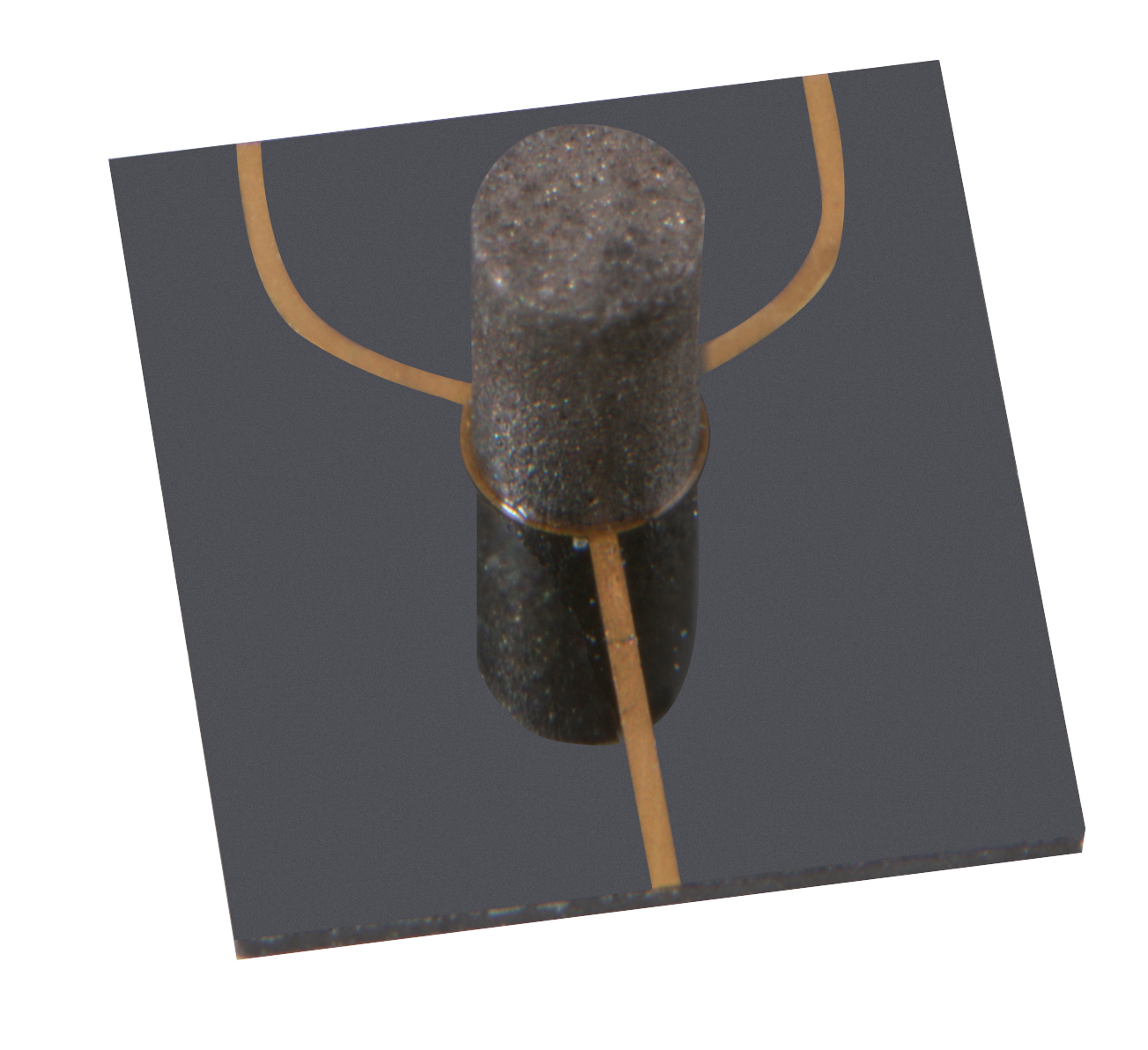

Image for On Carriers
Print Search Result

Microstrip Circulator / On Carriers

Type

Frequency Band

Search Results

Part Number Band (GHz) Bandwidth (GHz) VSWR Ins Loss Isolation Power Fwd/Rev Temporature Connector Drawing Quote Cart
3CMS23-4 2.10~2.50 full 1.22 0.4 20 5/5 -10~ +50 On Carrier pdf
3CMS26-1 2.60~3.00 full 1.22 0.4 20 5/5 -10~ +50 On Carrier pdf
3CMS26-2 3.00~3.50 full 1.22 0.4 20 5/5 -10~ +50 On Carrier pdf
3CMS39-1 3.60~4.20 full 1.3 0.5 20 5/5 -10~ +50 On Carrier pdf
3CMS54-1 5.00~5.90 full 1.3 0.5 20 5/5 -10~ +50 On Carrier pdf
4CMS(xx)-3X 5.70~7.40 18 1.22 0.5 20 10/10 -30~ +70 On Carrier pdf
3CMS65-1 5.80~7.20 full 1.3 0.55 18 5/5 -30~ +70 On Carrier pdf
3CMS71-1 6.30~8.00 full 1.3 0.55 18 5/5 -30~ +70 On Carrier pdf
3CMS78-2 7.10~8.50 full 1.3 0.55 18 5/5 -30~ +70 On Carrier pdf
3CMS95-1 8.40~10.70 full 1.3 0.6 18 5/5 -30~ +65 On Carrier pdf
4CMS10-3Y 8.50~10.50 full 1.3 0.6 18 5/5 -30~ +65 On Carrier pdf
4CMS11-1 10.00~12.00 full 1.3 0.5 18 5/5 -10~ +50 On Carrier pdf
4CMS12-3Y 11.70~14.50 full 1.3 0.6 18 5/5 -30~ +70 On Carrier pdf
4CMS14-3 13.50~14.50 full 1.3 0.6 18 5/5 -30~ +70 On Carrier pdf
4CMS14-2 14.00~14.50 full 1.3 0.6 18 5/5 -30~ +70 On Carrier pdf
4CMS15-5 14.00~15.50 full 1.35 0.7 18 5/5 -30~ +70 On Carrier pdf
4CMS19-1 17.70~19.70 full 1.35 0.8 18 2/2 -30~ +70 On Carrier pdf
4CMS22-1 21.20~23.60 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS24-3Y 22.50~25.00 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS25-3Y 24.00~25.5 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS28-3Y 27.50~28.50 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS29-1 29.00~31.50 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS33-3Y 30.00~35.00 full 1.35 1 17 2/2 -30~ +70 On Carrier pdf
4CMS35-1 34.00~36.00 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS(xx)-1X 34.00~40.00 5 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS(xx)-2X 34.00~40.00 5 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS36-1 34.40~38.60 full 1.4 1 17 2/2 -10~ +50 On Carrier pdf
4CMS36-2 35.00~37.00 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS37-1 36.00~38.00 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
4CMS39-3 37.00~40.00 full 1.35 0.9 18 2/2 -30~ +70 On Carrier pdf
